Nea
Конструкция вентиляторов серии NEA базирует на уже доступных в предложении продуктах серий ESCUDO, S-LINE и LINEA. Вентиляторы могут служить им альтернативой с точки зрения дизайна передней панели.
Детали
| DOSTĘPNE KOLORY | |||||||||
|
BIAŁY - WNB / INOX - WNI |
| РАЗМЕР- Ø 100 | |||||||
 |
 |
 |
 |
||||

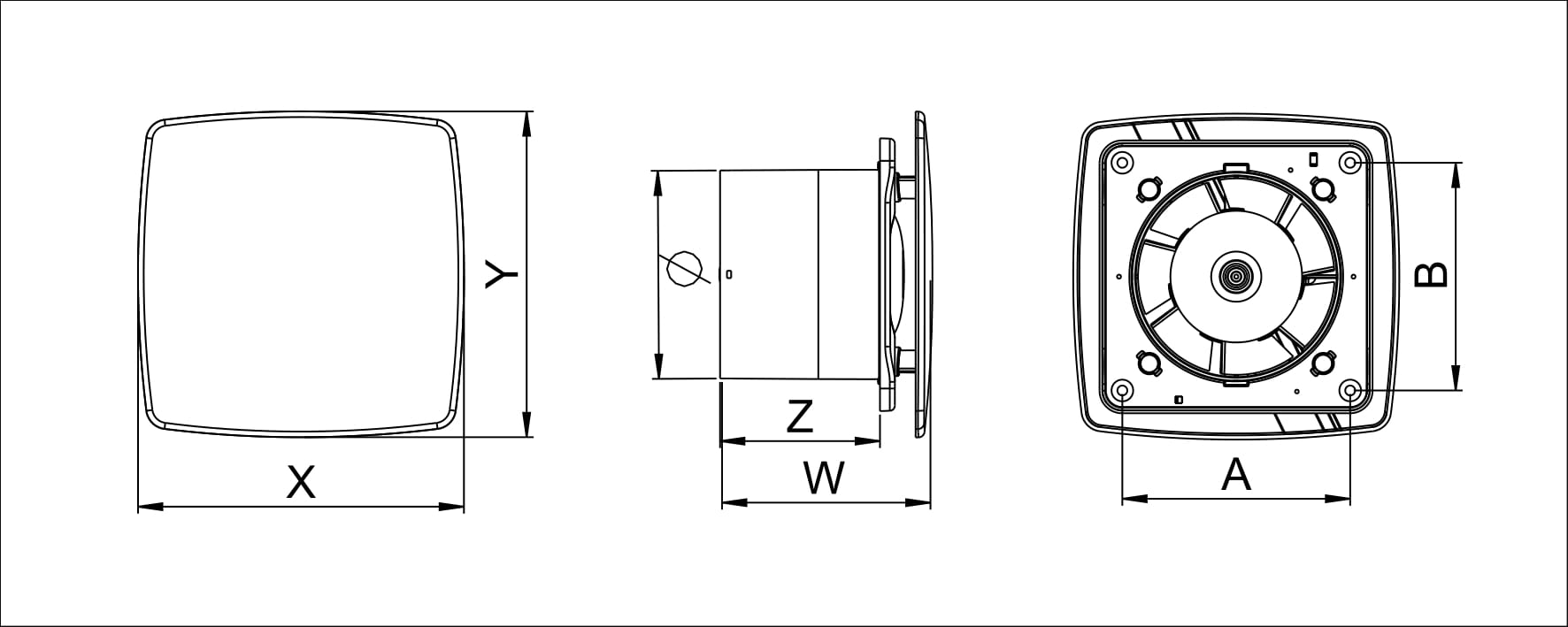

| index | Ø | A | B | X | Y | W | Z |
| WNB100 / WNI100 | 100 | 109 | 109 | 156 | 156 | 100 | 77 |
| WNB100W / WNI100W | 100 | 109 | 109 | 156 | 156 | 100 | 77 |
| WNB100T / WNI100T | 100 | 109 | 109 | 156 | 156 | 100 | 77 |
| WNB100H / WNI100H | 100 | 109 | 109 | 156 | 156 | 100 | 77 |
| WNB100CTR / WNI100CTR | 100 | 109 | 109 | 156 | 156 | 100 | 77 |
| ОПИСАНИЕ- Ø 100 | ||||||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| index | ||||||||||||
| WNB100 / WNI100 |  |
|
102 | 10 | 33 | 35 | IPX4 | |
||||
| WNB100W / WNI100W | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
|||
| WNB100T / WNI100T | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
|||
| WNB100H / WNI100H | |
|
|
|
102 | 10 | 33 | 35 | IPX4 | |
||
| WNB100CTR / WNI100CTR | |
|
|
|
* | * | 33 | * | IPX4 | |
||
| РАЗМЕР- Ø 125 | |||||||
|
|
|
|
||||
| index | Ø | A | B | X | Y | W | Z |
| WNB125 / WNI125 | 125 | 137 | 137 | 180 | 180 | 104 | 77 |
| WNB125W / WNI125W | 125 | 137 | 137 | 180 | 180 | 104 | 77 |
| WNB125T / WNI125T | 125 | 137 | 137 | 180 | 180 | 104 | 77 |
| WNB125H / WNI125H | 125 | 137 | 137 | 180 | 180 | 104 | 77 |
| WNB125CTR / WNI125CTR | 125 | 137 | 137 | 180 | 180 | 104 | 77 |
| ОПИСАНИЕ- Ø 125 | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
| index | ||||||||||||
| WNB125 / WNI125 | |
|
175 | 16 | 46 | 37 | IPX4 | |
||||
| WNB125W / WNI125W | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
|||
| WNB125T / WNI125T | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
|||
| WNB125H / WNI125H | |
|
|
|
175 | 16 | 46 | 37 | IPX4 | |
||
| WNB125CTR / WNI125CTR | |
|
|
|
** | ** | 46 | ** | IPX4 | |
||
| PRĘDKOŚĆ - Ø 100 | ||||
 CONTROL |
ZAKRES | |||
| I (min.) | II | III | IV (max.) | |
| WYDAJNOŚĆ [m3/h] | 34 | 58 | 69 | 102 |
| Db(a)Lpx=3m, A=20m2 | 21 | 26 | 32 | 35 |
| MOC [Wat] | 5 | 7 | 9 | 10 |
| PRĘDKOŚĆ - Ø 125 | ||||
| CONTROL |
ZAKRES | |||
| I (min.) | II | III | IV (max.) | |
| WYDAJNOŚĆ [m3/h] | 50 | 90 | 140 | 175 |
| Db(a)Lpx=3m, A=20m2 | 21 | 26 | 33 | 37 |
| MOC [Wat] | 6 | 9 | 12 | 16 |
Image Gallery
Additional Info
Kostka, Wyłącznik czasowy, Czujnik wilgoci, Regulacja prędkości, Włącznik pociągany, Silnik z łożyskami, Front panelowy, Średnica 100 mm, Średnica 125 mm, Biały, Inox
-
