Escudo
Модель ESCUDO отличается уникальной передней панелью с симметрично изогнутой поверхностью. Особого внимания заслуживает панель inox из матовой, нержавеющей стали. Вентилятор ESCUDO Control оснащен электронным процессором, который позволяет регулировать рабочие параметры – время задержки выключения и частоту вращения двигателя.
Детали
| DOSTĘPNE KOLORY | |||||||||
|
BIAŁY - WEB / SREBRNY - WES / ZŁOTY - WEZ / INOX - WEI |
| РАЗМЕР- Ø 100 | |||||||
 |
 |
 |
 |
||||

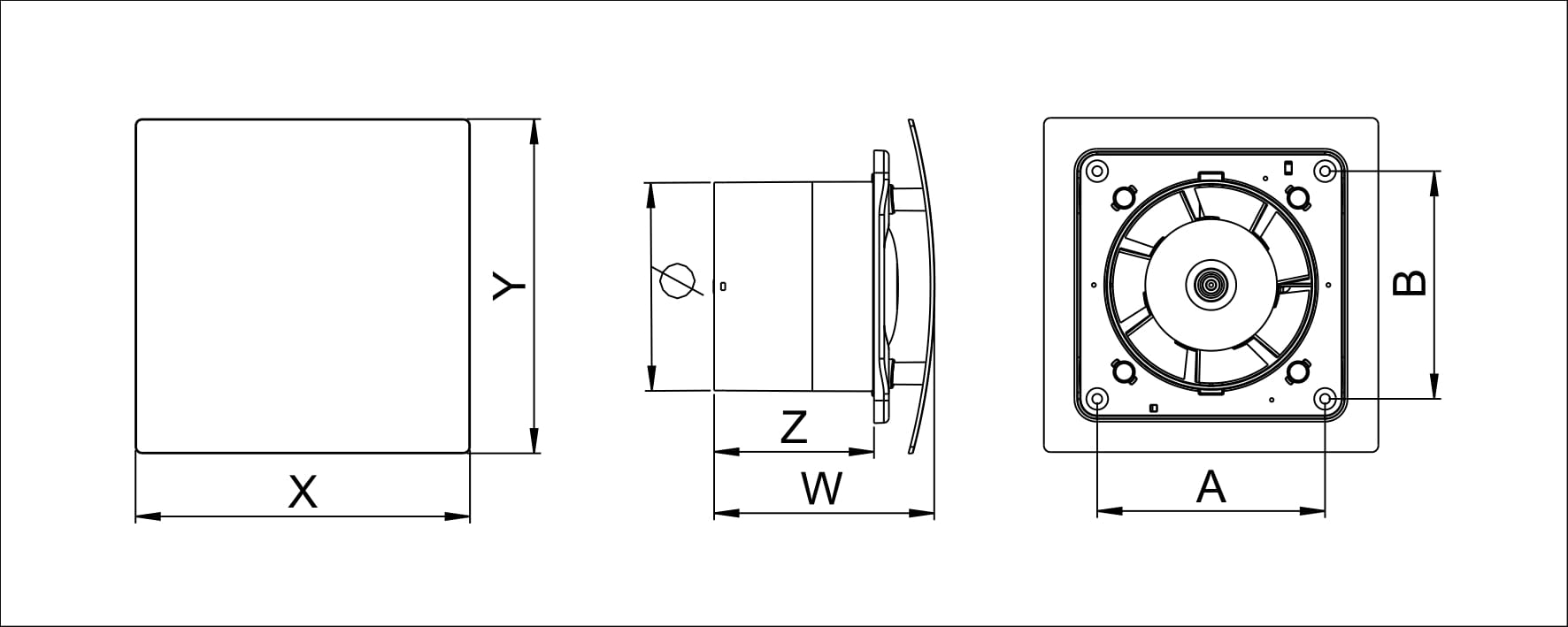

| index | Ø | A | B | X | Y | W | Z |
| WEB100 / WES100 | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEZ100 / WEI100 | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEB100W / WES100W | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEZ100W / WEI100W | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEB100T / WES100T | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEZ100T / WEI100T | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEB100H / WES100H | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEZ100H / WEI10H | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEB100CTR / WES100CTR | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| WEZ100CTR / WEI100CTR | 100 | 109 | 109 | 160 | 160 | 105 | 77 |
| ОПИСАНИЕ- Ø 100 | ||||||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| index | ||||||||||||
| WEB100 / WES100 |  |
|
102 | 10 | 33 | 35 | IPX4 | |
||||
| WEZ100 / WEI100 | |
|
102 | 10 | 33 | 35 | IPX4 | |
||||
| WEB100W / WES100W | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
|||
| WEZ100W / WEI100W | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
|||
| WEB100T / WES100T | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
|||
| WEZ100T / WEI100T | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
|||
| WEB100H / WES100H | |
|
|
|
102 | 10 | 33 | 35 | IPX4 | |
||
| WEZ100H / WEI100H | |
|
|
|
102 | 10 | 33 | 35 | IPX4 | |
||
| WEB100CTR / WES100CTR | |
|
|
|
* | * | 33 | * | IPX4 | |
||
| WEZ100CTR / WEI100CTR | |
|
|
|
* | * | 33 | * | IPX4 | |
||
| РАЗМЕР- Ø 125 | |||||||
|
|
|
|
||||
| index | Ø | A | B | X | Y | W | Z |
| WEB125 / WES125 | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEZ125 / WEI125 | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEB125W / WES125W | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEZ125W / WEI125W | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEB125T / WES125T | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEZ125T / WEI125T | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEB125H / WES125H | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEZ125H / WEI125H | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEB125CTR / WES125CTR | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| WEZ125CTR / WEI125CTR | 125 | 137 | 137 | 188 | 208 | 113 | 77 |
| ОПИСАНИЕ - Ø 125 | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
| index | ||||||||||||
| WEB125 / WES125 | |
|
175 | 16 | 46 | 37 | IPX4 | |
||||
| WEZ125 / WEI125 | |
|
175 | 16 | 46 | 37 | IPX4 | |
||||
| WEB125W / WES125W | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
|||
| WEZ125W / WEI125W | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
|||
| WEB125T / WES125T | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
|||
| WEZ125T / WEI125T | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
|||
| WEB125H / WES125H | |
|
|
|
175 | 16 | 46 | 37 | IPX4 | |
||
| WEZ125H / WEI125H | |
|
|
|
175 | 16 | 46 | 37 | IPX4 | |
||
| WEB125CTR / WES125CTR | |
|
|
|
** | ** | 46 | ** | IPX4 | |
||
| WEZ125CTR / WEI125CTR | |
|
|
|
** | ** | 46 | ** | IPX4 | |
||
| РАЗМЕР- Ø 150 | |||||||
|
|
|
|
||||
| index | Ø | A | B | X | Y | W | Z |
| WEB150 / WES150 | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEZ150 / WEI150 | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEB150W / WES150W | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEZ150W / WEI150W | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEB150T / WES150T | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEZ150T / WEI150T | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEB150H / WES150H | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEZ150H / WEI150H | 150 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEB150CTR / WES150CTR | 125 | 162 | 162 | 188 | 208 | 119 | 83 |
| WEZ150CTR / WEI150CTR | 125 | 162 | 162 | 188 | 208 | 119 | 83 |
| ОПИСАНИЕ- Ø 150 | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
| index | ||||||||||||
| WEB150 / WES150 | |
|
205 | 20 | 49 | 39 | IPX4 | |
||||
| WEZ150 / WEI150 | |
|
205 | 20 | 49 | 39 | IPX4 | |
||||
| WEB150W / WES150W | |
|
|
205 | 20 | 49 | 39 | IPX4 | |
|||
| WEZ150W / WEI150W | |
|
|
205 | 20 | 49 | 39 | IPX4 | |
|||
| WEB150T / WES150T | |
|
|
205 | 20 | 49 | 39 | IPX4 | |
|||
| WEZ150T / WEI150T | |
|
|
205 | 20 | 49 | 39 | IPX4 | |
|||
| WEB150H / WES150H | |
|
|
|
205 | 20 | 49 | 39 | IPX4 | |
||
| WEZ150H / WEI150H | |
|
|
|
205 | 20 | 49 | 39 | IPX4 | |
||
| WEB150CTR / WES150CTR | |
|
|
|
*** | *** | 49 | *** | IPX4 | |
||
| WEZ150CTR / WEI150CTR | |
|
|
|
*** | *** | 49 | *** | IPX4 | |
||
| PRĘDKOŚĆ - Ø 100 | ||||
 CONTROL |
ZAKRES | |||
| I (min.) | II | III | IV (max.) | |
| WYDAJNOŚĆ [m3/h] | 34 | 58 | 69 | 102 |
| Db(a)Lpx=3m, A=2-m2 | 21 | 26 | 32 | 35 |
| MOC [Wat] | 5 | 7 | 9 | 10 |
| PRĘDKOŚĆ - Ø 125 | ||||
| CONTROL |
ZAKRES | |||
| I (min.) | II | III | IV (max.) | |
| WYDAJNOŚĆ [m3/h] | 50 | 90 | 140 | 175 |
| Db(a)Lpx=3m, A=2-m2 | 21 | 26 | 33 | 37 |
| MOC [Wat] | 6 | 9 | 12 | 16 |
| PRĘDKOŚĆ - Ø 150 | ||||
| CONTROL |
ZAKRES | |||
| I (min.) | II | III | IV (max.) | |
| WYDAJNOŚĆ [m3/h] | 60 | 98 | 130 | 205 |
| Db(a)Lpx=3m, A=2-m2 | 22 | 25 | 33 | 39 |
| MOC [Wat] | 6,5 | 9 | 14 | 20 |
Image Gallery
Additional Info
Kostka, Wyłącznik czasowy, Czujnik wilgoci, Regulacja prędkości, Włącznik pociągany, Silnik z łożyskami, Front panelowy, Średnica 100 mm, Średnica 125 mm, Średnica 150 mm, Biały, Srebrny, Złoty, Inox
-
